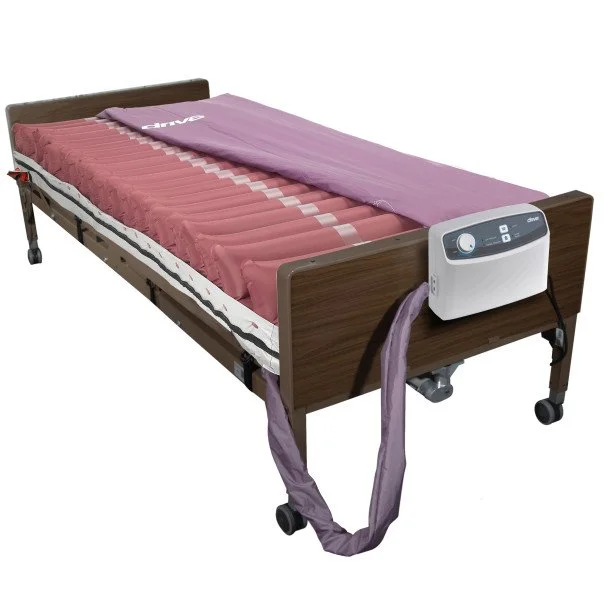

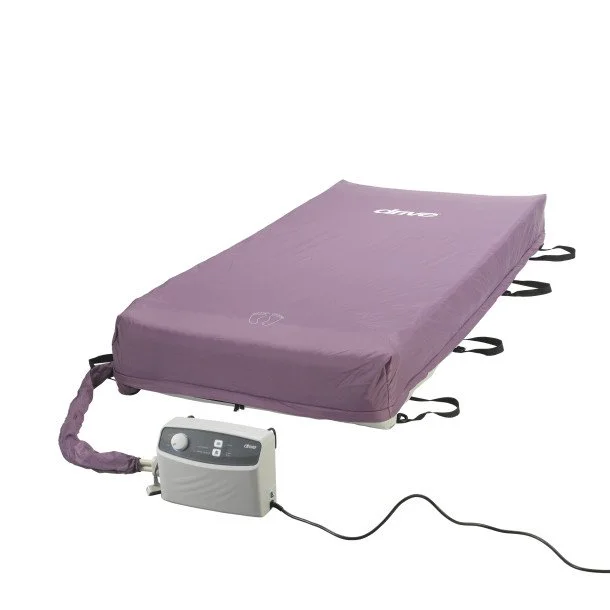

Med-Aire 8" Alternating Pressure and Low Air Loss Mattress System

Designed to prevent, treat and heal pressure ulcers in the home or long term care setting

• Control unit offers 10 minute cycles when alternating and can also be used in static mode

• Adjustable patient weight settings allow for optimal immersion and patient comfort & compliance

• Audio and Visual alarm alerts when air pressure is low

• System includes 20 individual air cells to maximize immersion and envelopment with pillow feature for head stability & comfort

• 8" deep air cells are easily removed and replaced with air leakage plugs

• Removable Nylon stretch cover is fluid resistant, low shear and vapor permeable helping protect the skin from friction and moisture

• CPR valve allows for rapid deflation

• Tubing quickly and easily disconnects with EZ Lock/Quick Release design

Drive Med-Aire 14027 Overview

Who Uses the Med-Aire 14027 Low Air Loss Mattress? Caregivers and hospital staff use this mattress for individuals who are bedridden and require a low air loss mattress system to protect the skin from pressure sores.

Why They Love It: The mattress and pump system operates quietly and provides both alternating or static pressure options. The zippered cover is removable for cleaning.

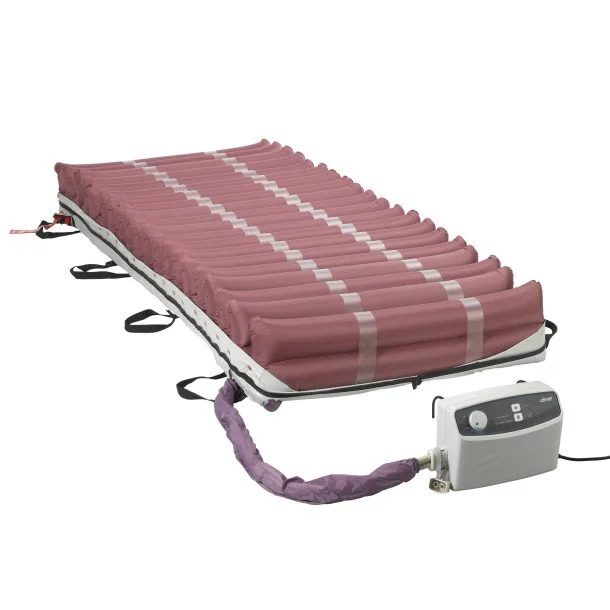

Drive Medical 14027 Med-Aire Alternating Pressure Low Air Loss Mattress System is a pressure mattress system providing both alternating pressure and static pressure. The air mattress pump provides alternating pressure and is designed to be used in the prevention, treatment, and management of pressure ulcers. The air pump produces consistent air flow and is "whisper quiet." The EZ Lock Quick Release Tubing Connector locks the pump and mattress together. Pressure tabs on the EZ Lock allow easy connection and quick disconnect. This low air loss mattress has 20 air bladders. Nine (9) of the bladders are equipped with laser holes to achieve the low air loss function, which increases patient comfort, keeps the patient cool, and speeds recovery.

Features and Benefits

• Low Air Loss Mattress

• Special vibration-isolating features ensure that the patient rests easily without feeling the pumps' vibrating action

• LED and audible alarm provides critical performance data and alerts caregivers when pressure falls below 10 mmHg (inner mattress pressure)

• Four air cells at head section remain static to enhance pillow function

• Easy-to-replace individual bladders

• Quick-fill adapter and carry bag standard

• Spring-lined air tubes prevent kinks and disruption of air flow

• CPR valves provide fast (20-second) deflation

• Eight-inch-high air cells are constructed with Nylon and 50% PVC for durability

• Urethane-coated nylon fabric (two-way stretch) is water-resistant, vapor-permeable, machine washable, and low-shear

• Twelve-month limited warranty

Mattress Specifications

• Width: 36 Inches

• Length: 80 Inches

• Height: 8 Inches

• Weight: 5.7 Pounds

• Weight Capacity: 350 Pounds

• Med Aire Alternating Pressure Mattress Topper Material: Zippered All Around and Quilted

• Base Material: Zippered PVC Mesh

• HCPCS Code: E0277

• Drive Medical Med-Aire Low Air Loss Mattress Warranty: Twelve-Month Limited

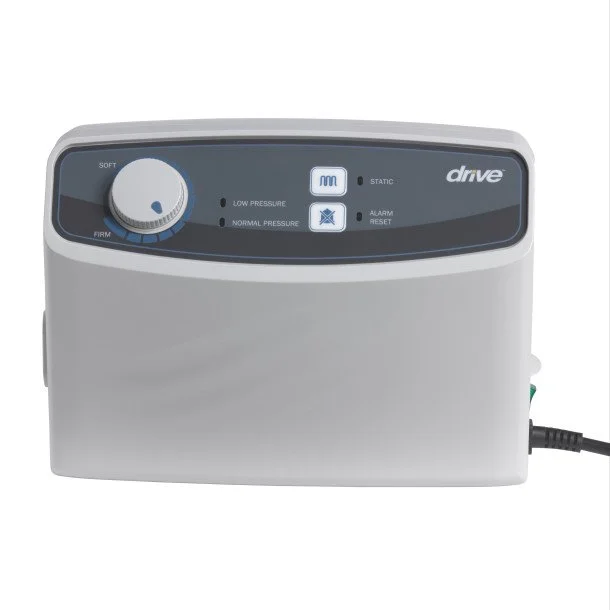

Pump Specifications

• Width: 11 Inches

• Height: 8 Inches

• Depth: 3.5 Inches

• Air Volume: 8 LPM (Liters per Minute)

• Pressure Range: 30 mmHg to 80 mmHg (Inner Mattress Pressure)

• Power: 120 VAC 60 Hz, 12 Watts, 1 Amp

• Cycle Time: 10 Minutes

• Functions: Static and Dynamic Features

• Power Cord Length: 14.76 Feet

• UL: 60601-1, 1st Edition-2006

• Maximum Current: 0.5 Amps

• Drive Medical Med-Aire Low Air Loss Mattress Pump Warranty: 12-Month Limited

Drive Medical manufactures a variety of alternating pressure mattresses and bed accessories to meet the needs of homecare patients and hospital residents.
