Description

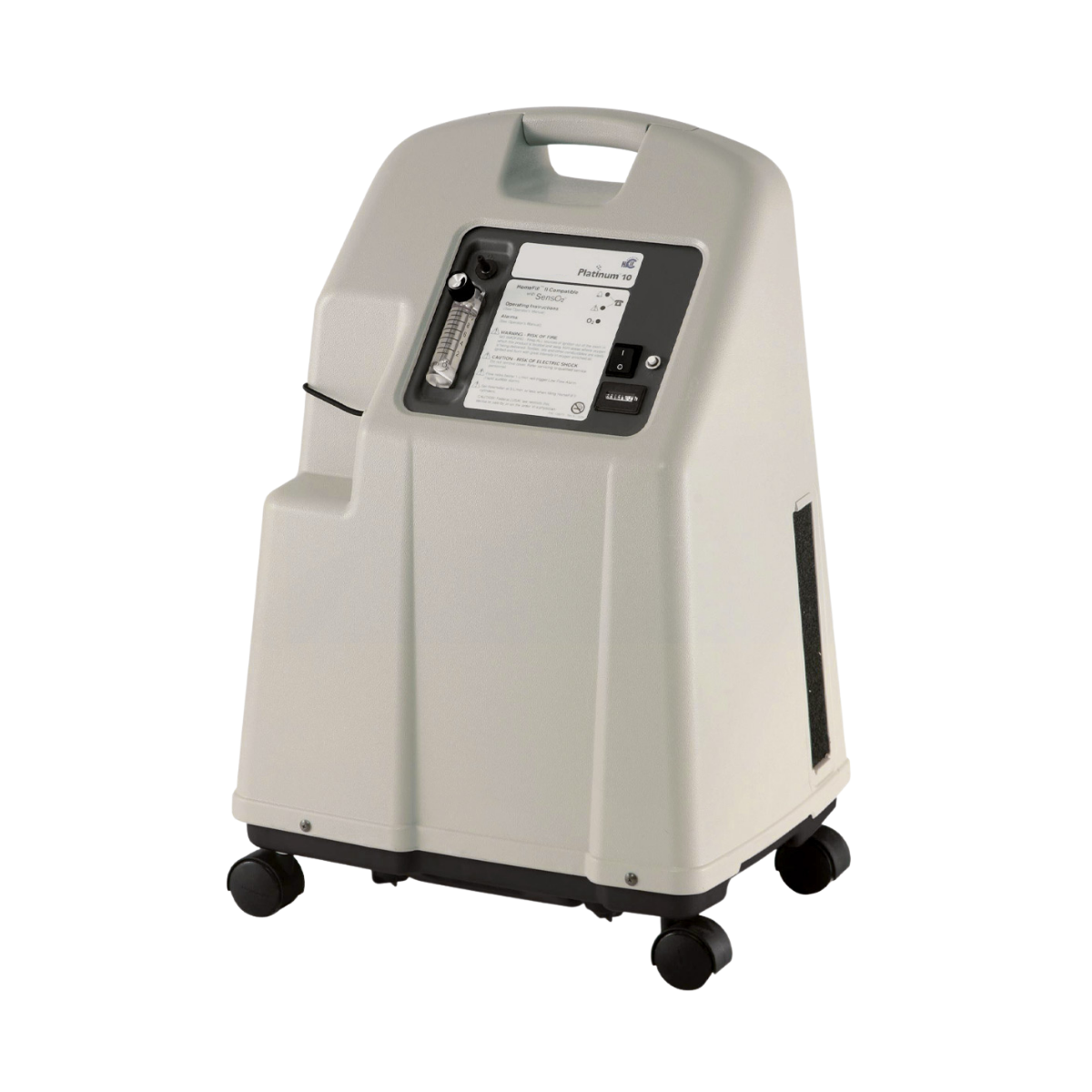

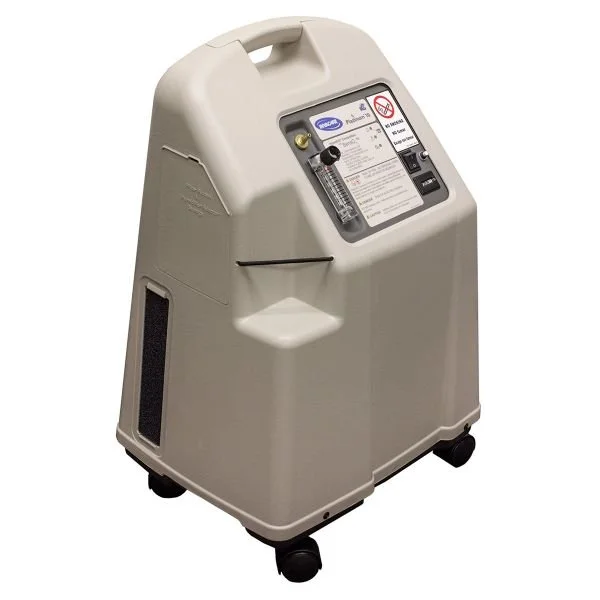

The Platinum 10L Oxygen Concentrator provides an attractive, 24-hour home oxygen solution for high flow oxygen users who are tired of inconvenient liquid or tank solutions. The Platinum 10L is built for reliability, performance and value with quiet operation, up to 10 LPM oxygen output, a host of convenience features, and a superior SenseO2 Oxygen Purity Sensor.

10 LPM - VERY HIGH CONTINUOUS FLOW OXYGEN OUTPUT
React Health's Platinum 10L Stationary Oxygen Concentrator is a user-friendly continuous flow oxygen concentrator with smart convenience features like sturdy rolling caster wheels and a top handle so it's easy to move around the house when needed. By drawing in room air and filtering out the nitrogen, Platinum 10L provides an unlimited, worry-free, medical grade oxygen, 24-hours-a-day, 365-days-a-year, at levels from 2-10 LPM (liters per minute). It is ideal for people who require higher oxygen flows than most home oxygen concentrators can provide; and it can even be used with HomeFill systems for patients with lower flow rates.

EASY TO USE, EVEN FOR NEW OXYGEN USERS
The Platinum 10L features neutral coloring that will fade into the background of most environments. Simple flow knob controls, power buttons, and alerts on the front of the unit make this concentrator easy to use, even for inexperienced oxygen users.

SIMPLE, SECURE HUMIDIFICATION OPTIONS
Many oxygen users prefer to add humidification to their oxygen flow for added comfort and convenience. Platinum 10L includes a bubble humidifier slot on the front of the unit so that adding humidification is easy. Simply seat the bottle within the slot and attach it between the oxygen output and your nasal cannula. High flow bubble humidifier bottles are available as an add on to this bundle in your shopping cart.

INCLUDES SENSO2 PURITY SENSOR FOR ADDED SECURITY
This Platinum 10L Oxygen Concentrator Bundle comes complete with InvaCare's SensO2 Oxygen Purity Sensor to show what concentration of oxygen is being delivered. With SensO2, you'll have confidence that you're receiving the treatment prescribed. The SensO2 indicator light will display a GREEN light during normal operation (oxygen concentration levels greater than 85%), a YELLOW light for concentrations between 73-85%, and a RED light (accompanied by an audible alarm) for oxygen concentrations less than 73%.

ROBUST, SAFE & RELIABLE
Platinum 10L is designed to be largely maintenance free with reusable cabinet filters that are easy to wash and replace, an internal HEPA filter hidden behind a convenient door, a battery-free power loss alarm, and a Sieve-GARD Monitor to protect the internal sieve from degradation. The compressor has a 35 PSI pressure-relief valve and a low flow alarm as well for added protection. With robust construction and a long term warranty the Platinum 10L stationary oxygen concentrator provides worry free oxygen in even the most rigorous environments.

Features of
Platinum 10L Stationary Oxygen Concentrator

Provides continuous flow up to 10LPM.

HomeFill compatible for inventory flexibility.

Patient accessible reset button helps minimize
emergency service calls.

May be eligible for QG billing modifier.1


1- Providers are responsible for determining the appropriate billing codes when submitting claims to the Medicare program.

User friendly design with easy to see control panel,
humidifier bottle and filter access.

HomeFill compatability allows patients with higher flow prescriptions to access small, lightweight portable
oxygen.

Lower heat generation and power consumption than other high flow concentrators.

Platinum 10 Oxygen Concentrator- IRC10LXO2

Gross Particle Cabinet Filter-1107412

Inlet Filter-1131249

Brass Barbed Connector-1180107

Product Information

• ManufacturerReact Health

• In the PackagePlatinum 10L Oxygen Concentrator with SensO2, 3-Year Manufacturers Warranty, and Printed Patient Manual.

• Part Number(s)IRC10LXO2

• HCPCS CodeE1390

• GTIN / UPC Code00091536421056

• Warranty3 Years - Review manufacturer's documentation for full warranty details.

• Prescription ItemPrescription required for the purchase of this item.

• CountryMexico (Typical Origin)

Physical Specifications

• Available Color(s)Beige with Black Highlights

• Size (Approx)26.5 x 18.5 x 14.5 Inches

• Weight (Approx)54 Lbs

Oxygen Performance Specifications

• Continuous Settings2 to 10 LPM

• Oxygen Concentration87% to 95.6% (at 2 to 10LPM)

• Sound Levels50 dBa (Typical)

• Operating AltitudeUp to 4,000 Feet

• Tubing & Cannula Length50 Feet (Maximum)

• FiltersExternal: 2 Air Inlet Cabinet Filters (Clean at least once a week and replace as needed); Internal: Outlet HEPA Filter, Compressor Inlet Filter (Check every 6 months and replace as needed)

• AlarmsHigh System Pressure, Low System Pressure, Power Failure, Low Oxygen Level, System Failure, Potential Obstruction Alert, High System Temperature

• Power Specifications

  • AC (Wall) Power120VAC (±10%) / 60Hz

  • AC Power SupplyNo, Slimline Power Cord Only

  • AC Power Cord Length7.5 Feet (Approx)

  • Power Consumption585 Watts Average

  • DC (Mobile) PowerNot Applicable

  • Battery PowerNot Applicable
